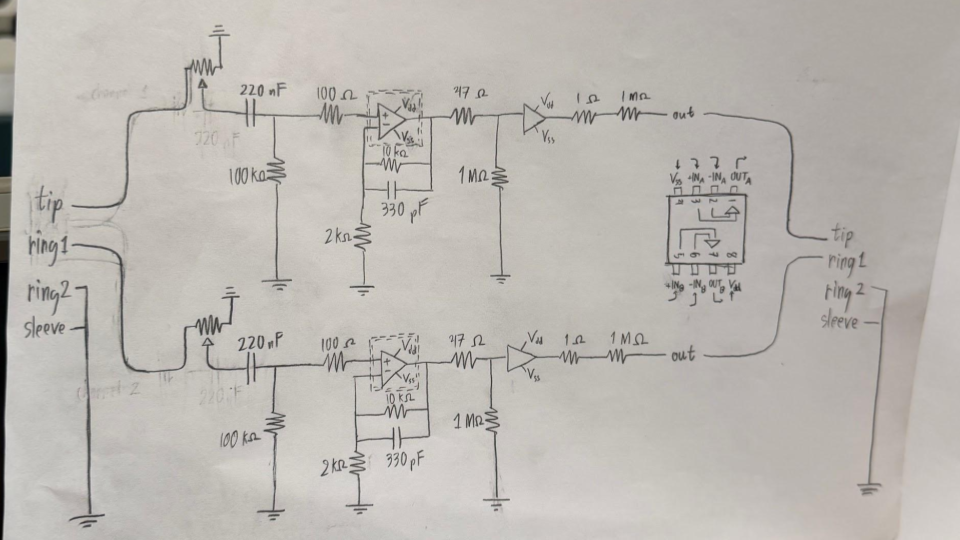

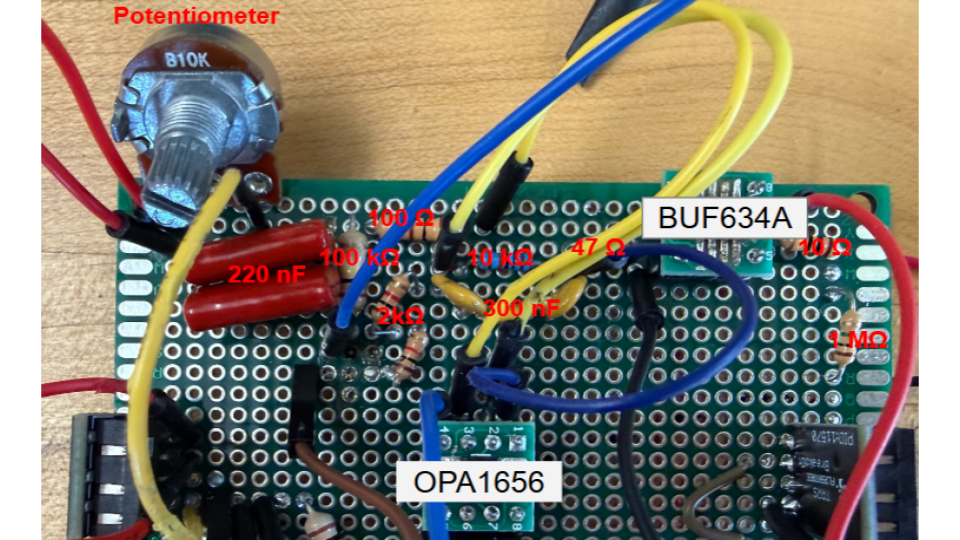

Project Specifications:
Output load impedance of R=32Ω (nominal)-300 Ω (max).
Maximum output power (RMS): Pout,RMS ≥ 100 mW/ch (on battery) with RL=32Ω.
Amplifier’s output impedance: Rout < 5 Ω.
Amplifier’s input impedance: Rout ≥ 10 kΩ.
Audio input’s signal amplitude: Vin,RMS = 0.3 V (nominal), Vin,max = 1 V (peak-to-peak).
Audio input’s source impedance: Rsig = 100 Ω.
3-dB small-signal bandwidth: 18Hz-25kHz (nominal).
Full-power bandwidth: >20kHz.
Total harmonic distortion: THD<0.1% or -60dB with Pout,RMS = 100 mW on nominal load RL = 32Ω at 1kHz.
Power supplies: dual rail ±(7 to 9)V when using two 9V batteries.
Power consumption: PD = |Vdd ∗ Idd| + |Vss ∗ Iss|, for battery operation at max output power. Idd,avg ≈ Iss,avg < 50mA. Idd,peak ≈ Iss,peak < 100mA.
Maximum output power (RMS): Pout,RMS ≥ 100 mW/ch (on battery) with RL=32Ω.
Amplifier’s output impedance: Rout < 5 Ω.
Amplifier’s input impedance: Rout ≥ 10 kΩ.
Audio input’s signal amplitude: Vin,RMS = 0.3 V (nominal), Vin,max = 1 V (peak-to-peak).
Audio input’s source impedance: Rsig = 100 Ω.
3-dB small-signal bandwidth: 18Hz-25kHz (nominal).
Full-power bandwidth: >20kHz.
Total harmonic distortion: THD<0.1% or -60dB with Pout,RMS = 100 mW on nominal load RL = 32Ω at 1kHz.
Power supplies: dual rail ±(7 to 9)V when using two 9V batteries.
Power consumption: PD = |Vdd ∗ Idd| + |Vss ∗ Iss|, for battery operation at max output power. Idd,avg ≈ Iss,avg < 50mA. Idd,peak ≈ Iss,peak < 100mA.
